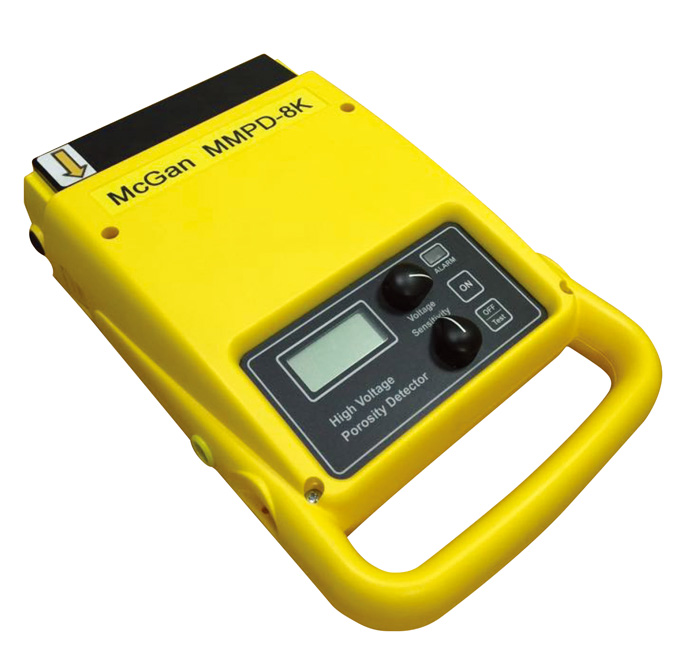

McGan MMPD-8K電外科絕緣缺陷檢測器是一種電池供電單元，用于測試電外科器械絕緣的完整性，如針孔，裂縫或缺陷，以防止電外科手術過程中可能發生的意外組織灼傷。電外科器械的絕緣的完整性可以隨著時間的推移，通過正常的手術使用，通過意外接觸尖銳的儀器或者將絕緣體摩擦到磨損點。絕緣故障為電流離開儀器的電極提供了一個替代的途徑，通常超出外科醫生的視野，這將導致意外的組織灼傷。
美國McGan MMPD-8K絕緣檢測儀特征：
設計結合了便攜式電池組
充電3小時（過充保護）
用恒流源保持應用的測試電壓
易調節電壓控制
在低電壓下全測試電流。報警靈敏度控制。
選擇測試電極
有限的輸出電流用于操作安全
調節直流輸出，可調0?8kV
視覺和聽覺報警
LCD顯示報警和電池充電
彩色編碼電纜和端口
美國McGan MMPD-8K絕緣檢測儀符合規格：
ANSI / AWWA C231-94
UL（電源變壓器）
CE標志符合EEC指令89/336
JIS G-3491，JIS G-3492
FDA注冊（501K）
美國McGan MMPD-8K絕緣檢測儀產品規格：
重量：4.85磅（2.2公斤）
顯示：LCD
電壓：0V至8kV可調
分辨率：10V
電流輸出：探頭<0.1mA
短路：最大測試電流0.1mA
電源：GellCell最大1.5mA
尺寸：10.25“x 6.3”x 2.75“
報警：聽覺和視覺
美國McGan MMPD-8K絕緣檢測儀典型測試電壓：
雙極微型：0.4kV DC
雙極標準：2.5kV DC
單極：4.2kV DC
深圳市展業達鴻科技有限公司
聯系人：曾先生 ? 手機：15920060912 ? QQ:8329063 ?郵箱：15920060912@139.com
辦公地址：深圳市福田區八卦四路22號華晟達7樓5A?
McGan Technology’s MMPD-8K electrosurgical insulation defect detector is a battery operated unit that tests the integrity, such as pinholes, cracks or defects, of the insulation of electrosurgical instrument in order to prevent inadvertent tissue burns which may occur during electrosurgical instrument procedures. The integrity of the insulation of electrosurgical instruments can occur over time, through normal surgical use, through the accidental contact with a sharp instrument or the rubbing of the insulation to the point of abrading it. The insulation failure provides an alternate pathway for the current to leave the instrument's electrode usually beyond the sight of the surgeon which will result in the unintended tissue burn. Using an electrosurgical test equipment maintenance program can greatly reduce the number of these inadvertent burns during electrosurgical procedures.
Features:
Design incorporates a portable battery pack
Charges in 3 hours (overcharging protection)
Maintains applied test voltage with constant current source
Easy adjustable voltage control
Full test current at low voltages. Alarm sensitivity control.
Selection of test electrodes
Limited output current for operational safety
Regulated DC output, adjustable 0 to 8kV
Visual and audible alarms
LCD displays alarm and battery charge
Color coded cables and ports?
?
