美國Cirs 600 3D軀干模體詳細描述

　美國Cirs 600 3D軀干模體描述

旨在為醫學成像和劑量測定應用提供平均雄性軀干（22厘米厚度）的精確模擬。用于制造幻影的環氧材料在診斷和治療能量范圍（40keV至20MeV）之間提供最佳的組織模擬。

與其他橫斷面劑量測定模型不同，600型包括內臟器官結構，如心臟，肝臟，腎臟和胰腺。所有模擬器官與實際器官的組織密度相符，可以清晰可視。

模型的下部包含模擬30％脂肪和70％肌肉組織混合物的軟彈丸材料。肌肉模擬材料層疊肋骨和脊柱。外部信封模擬了43％的脂肪和57％的肌肉組織的混合物。

600型的所有部分依次編號，便于組裝。



美國Cirs 600 3D軀干模體原產地：美國

美國Cirs 600 3D軀干模體特色：
包括內臟器官結構
理想的校準，質量保證和培訓目的，特定的內部器官是感興趣的
可以配置為適應多種劑量測量介質
可用于任何X射線成像或治療裝置
3D軀干幻影包括：
具有骨骼結構的組織等效軀干腔
組織等效肺，心臟，肝臟，胰腺，膽囊和腎臟
泡沫襯里手提箱
技術手冊

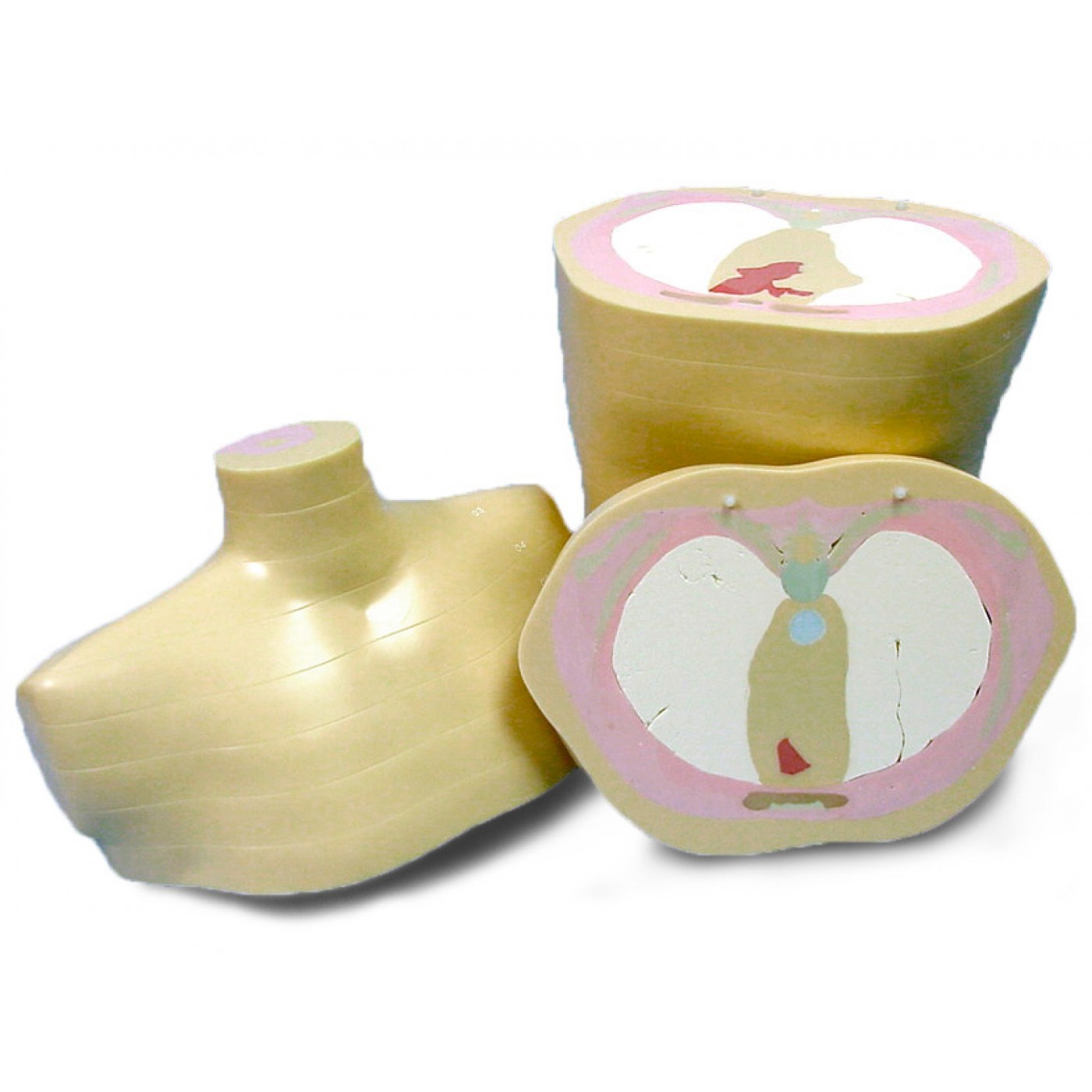

DESCRIPTION of Cirs 600 3D Sectional Torso Phantom

Designed to provide an accurate simulation of an average male torso (22 cm PA thickness) for medical imaging and dosimetry applications. The epoxy materials used to fabricate the phantom provide optimal tissue simulation between the Diagnostic and Therapy energy range (40 keV to 20 MeV).

Unlike other cross-sectional dosimetry phantoms, the Model 600 includes internal organ structures such as the heart, liver, kidneys, and pancreas. All simulated organs match the tissue density of actual organs and can be clearly visualized.

The lower portion of the phantom contains a soft bolus material simulating a mix of 30 percent adipose and 70 percent muscle tissue. Muscle simulating material layers the rib cage and vertebral column. The exterior envelope simulates a mix of 43 percent adipose and 57 percent muscle tissue.

All sections of the Model 600 are sequentially numbered for easy assembly.

Country of Origin: United States of America

Features of Cirs 600 3D Sectional Torso Phantom:
Includes internal organ structures
Ideal for calibration, QA and training purposes when specific internal organs are of interest
Can be configured to accommodate a multi-tude of dose measurement media
Usable on any x-ray imaging or treatment device
3D Torso Phantom Includes:
Tissue equivalent torso cavity with skeletal structure
Tissue equivalent lungs, heart, liver, pancreas, gall bladder and kidneys
Foam lined carrying case
Technical manual
